DPFX-700-TR; 4K @ 60hz DisplayPort 1.2 Extender

The DPFX-700-TR is designed as a slim, lightweight module for ease of installation to fit into various compact and challenging environments.

The DPFX-700-TR is a DisplayPort 1.2 module that features one detachable fiber optical extender with 2m (6.5 ft.) of extra copper cable that can transmit signals up to 200m (656 ft.) of 4K (4096 x 2160) @ 60Hz over one LC multi-mode fiber. The DPFX-700-TR provides a short copper cable extension option, connecting to each side of TX / RX (Transmitter and Receiver) for flexible installation either on the back of the server or display.

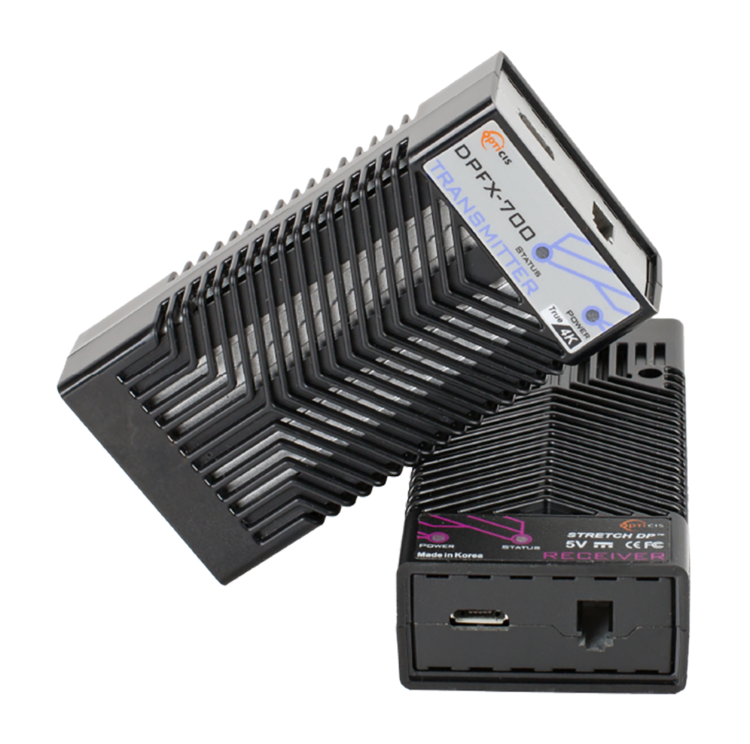

The DPFX-700-TR, which comes with the Transmitter (DPFX-700-TX) and Receiver (DPFX-700-RX), utilizes a one LC fiber connector that gives a clean and secure with seamless installation. It transmits uncompressed and transparent data signal even when used up to 2m (6.5 ft.) of extended copper cable as an intermediary. However, depending on the circumstances, customers can select a direct connection type module like DPFX-300-TR on the side and a copper extension type module on another side.

System Includes


    Supports DisplayPort 1.2 standards

    Supports up to 4K (4096 x 2160) at 60Hz

    Transmits DisplayPort 1.2 data up to 200m

    Offers total data rate 21.6 Gbps

    Supports Dual-mode DP

    Supports Auxiliary/I²C channel over fiber





     Supports Multi-Stream Transport

    Provides compact design that allows direct             connection to DisplayPort source/display

    Plug & Play

    Auto power switching

    Data security with negligible EMI emission

    Certifies FCC and CE standards for EMI/RFI             emission
