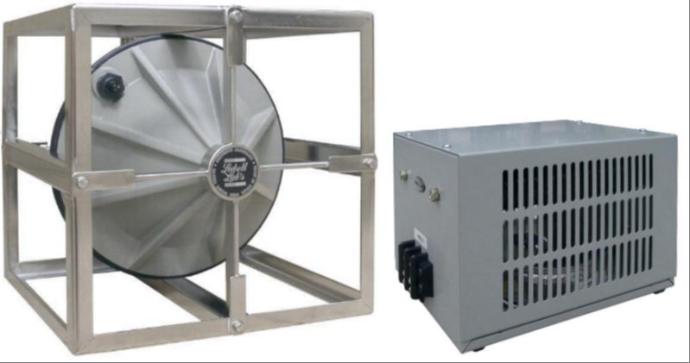

LL1424HP Underwater Acoustic Transducer

The Lubell Labs LL1424HP operates effectively within a frequency range of 200 Hz to 9 kHz. It has a maximum sound pressure level (SPL) of 197dB/uPa/m @ 600Hz and a nominal impedance of 4 ohms, which varies with frequency (refer to the US Navy Z plot or tabular data for details). The LL-1424HP is designed for use in rivers, lakes, and oceans, featuring a durable MIL-A-8625 Type III hard coat anodize and an 8-mil PPG Amerlock II epoxy finish. The LL1424HP is housed in a heavy-duty 316 stainless steel cage equipped with an isolation mounting system.

The Lubell Labs LL1424HP is equipped with a Subconn MCBH3MAS underwater mateable bulkhead connector. It includes a 50-foot, 16/3 Subconn SOOW cable that is fitted with a Speakon NL4FC connector for connecting to the Lubell LL1424HP transformer box. Custom SOOW cable assemblies of various lengths and gauges can be special-ordered, with an expected delivery lead time of 8 to 12 weeks.

Features

Finish (2024): 8 mil PPG Amerlock II (AK2-81 Safety Yellow) over MIL-A-8625 Type III, Class 1 hard coat anodize; 316 SS electropolished cage

Frequency Range: 200 Hz - 9 kHz

Maximum SPL: 196dB/uPa/m @ 600 Hz

Maximum Voltage/Current: 80 Vrms or 10A, whichever comes first!

Duty Cycle: 100%/10A, 50%/14A

Impedance: 4 ohms nominal (including AC1424HP xfmr box)

Depth Rating: 1.83 meters minimum depth, and 12.19 meters maximum depth

LL1424HP Bulkhead Connector: Subconn MCBH3MAS (lubricating instructions here). Coding: Pin 1 (hot), Pin 2 (return/ground), Pin 3 (return/ground).

Cable: Subconn MCIL3F/MCDLS-F on 50-foot SOOW terminated with Speakon NL4FC. Coding: Pin 1+ (white), Pin 1- (black), Pin 2- (green).

LL1424HP Dimensions / Weight (NET): 16.5 IN x 16.5 IN x 16.5 IN / 61 pounds in air / 33 pounds in water

LL1424HP Dimensions / Weight (GROSS): 22 IN x 22 IN x 22 IN / 72 pounds

AC1424HP & MCIL3F-16-50 Dimensions / Weight (GROSS): 13 IN x 13 IN x 16 IN / 22 pounds / HTS code 8518.21.0000, NLR, EAR99
